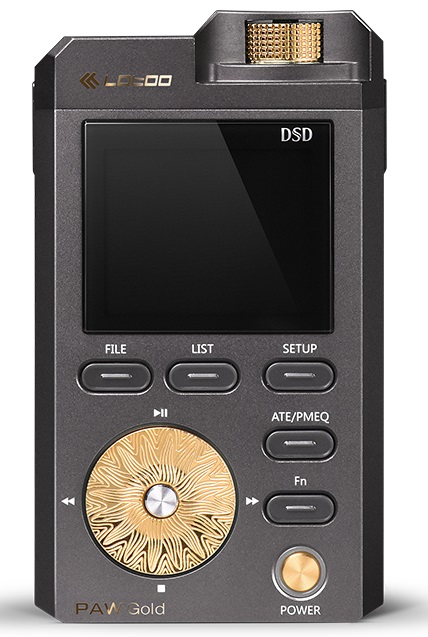

PAW Gold 2017PAW Gold 2017

General Specification



Casing: Aviation grade aluminium alloy



Display : 1.8: Colour OLED



Connection: USB 3.0



Output Terminals: 3.5mm Headphone + 3.5mm Line Out



Unit Size: 60  x 104 x 25.4 mm (W x H x D)



Weight: 280g



Battery Capacity : 22Wh lithium polymer battery



Clock Jitter: 5ps (Typ)



Firmware Upgrade: Support



Storage: SDHC / SDXC ( Max. 2TB)



Playback File Format:

DSD64(2.8M,1BIT) / DSD128(5.6M,1BIT) DFF / DSF / ISO / FLAC / APE / WAV / AAC / ALAC / MP3 / WMA / M4A / WavePack



Playback Time: Around 12 hours



Output Power: 500mW@32 Ohm Per Channel



DAC Chip: TI PCM1792



Amplifier Chip: TI LME49600



Processors: ADI Blackfin 514 DSP



Sample Rate: PCM 8kHz-192kHz / DSD 2.8MHz / DSD 5.6MHz



Headphone Output Frequency Response :

±0.06dB (20~20kHz)
±1dB (5~50kHz)



THD + N : 0.00036%@1kHz (20~20kHz, A weighting No load)



SNR: 120dB (20~20kHz, A Weighting)



Channel Separation: -119dB



Dynamic range: 121dB@1kHz (20~20kHz, A Weighting)



Output Level:

+15 dBu (High Gain)
0 dBu (Low Gain)



Line Out:

Frequency Response

±0.06dB (20~20kHz)
±1dB (5~50kHz)



THD + N: 0.00036%@1kHz (20~20kHz, A weighting No load)



SNR: 120dB (20~20kHz, A Weighting)



Channel Separation: -119dB



Dynamic range:  121dB@1kHz (20~20kHz, A Weighting)



Output Level : +9 dBu
